Aluminum Alloy Concert Stage Lighting Truss System
| 起源の場所 | 江蘇、中国 |
|---|---|
| ブランド名 | Shizhan |
| モデル番号 | アルミニウムトラスRT |
| 最小注文数量 | 100 |
| 価格 | US$44-46 |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 材料 | アルミ合金6082-T6 | 単位長さ | 0.5m、1m、2m、3m、4m、5mまたはカスタマイズされる |
|---|---|---|---|
| トリスセクション形状 | 正方形または円形 | トラスの形 | 正方形、三角形、円形またはカスタマイズされる |
| トラスチューブの厚さ | 1.5/2/3mm | トラスチューブの直径 | 20mm、32mm、50mm |
| 硬度 | 16度 | 軽dutyトラス | 200*200mm 250*250mm |
| 中程度のトラス | 290*290mm、300*300mm; 350*350mm、300*400mm、400*400mm、450*450mm、400*600mm | 重荷用トラス | 520*760mm; 600*760mm; 600*1000mm |
| メインチューブの厚さ | 30*2mm; 50*3mm; 50*4mm; 50*5mm | 副チューブの厚さ | 18*2mm 20*2.5mm 25*2.5mm |
| ブレースチューブの厚さ | 20*2mm; 25*2mm; 30*2mm | トラス タイプ | スピゴットかボルト |
| トラス形状オプション | はしごトラス、三角形のトラス、正方形のトラス、アーチトラス、円トラス | ||
| ハイライト | aluminum alloy concert truss system,lighting truss for stage,aluminium truss with warranty |
||
製品の説明

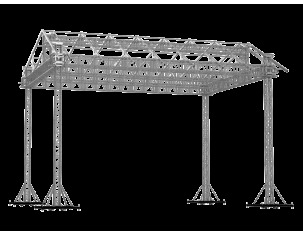

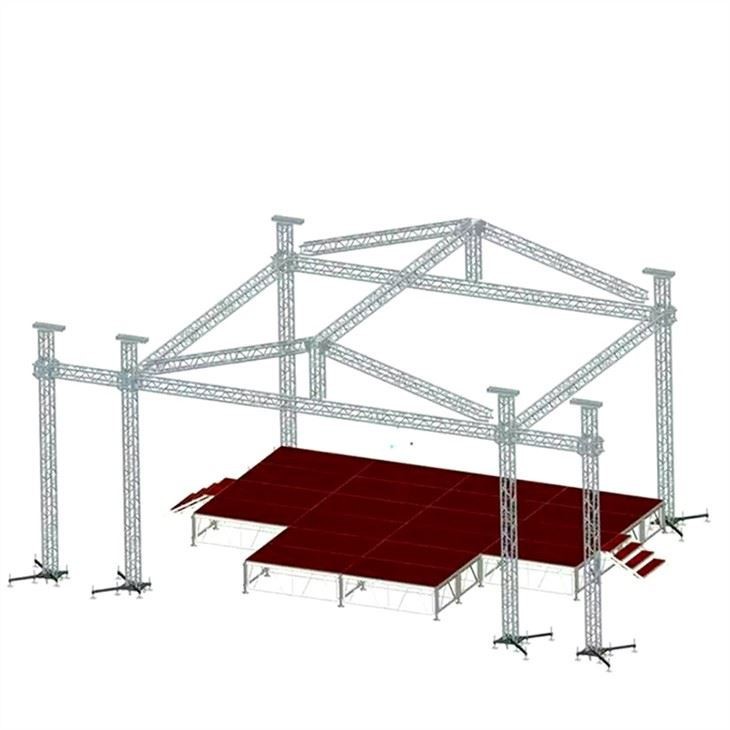

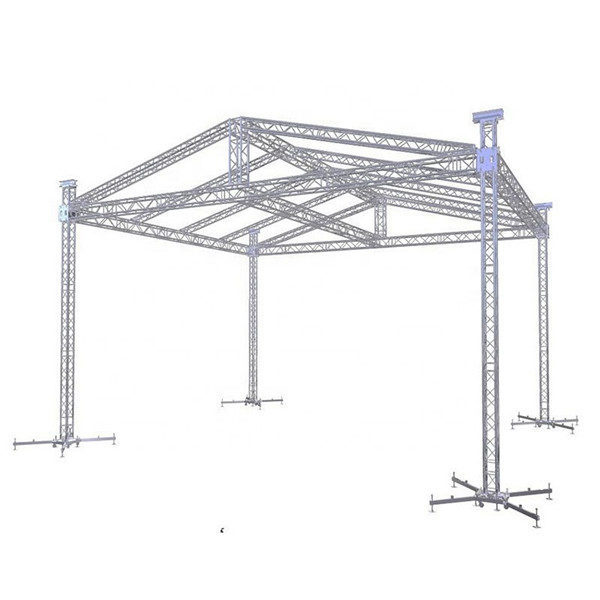

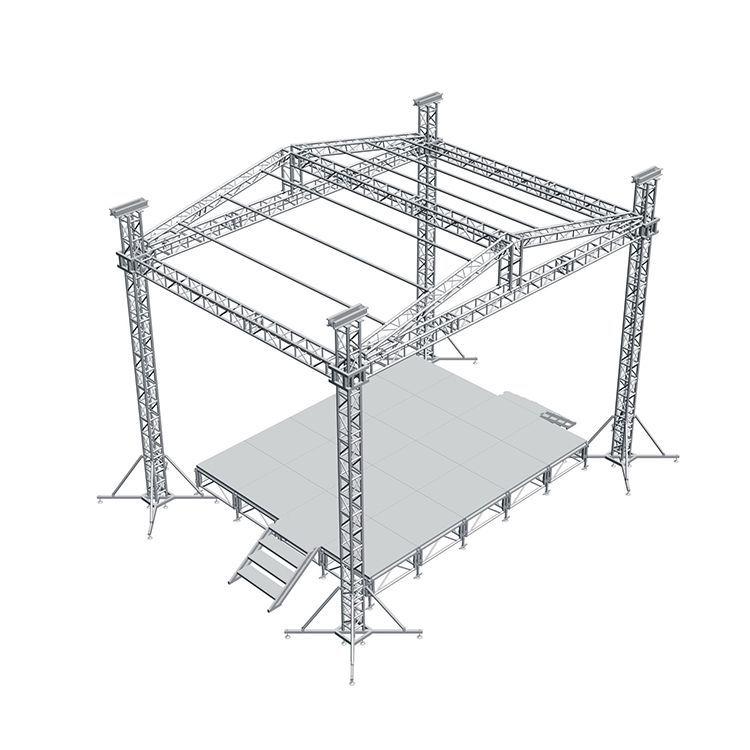

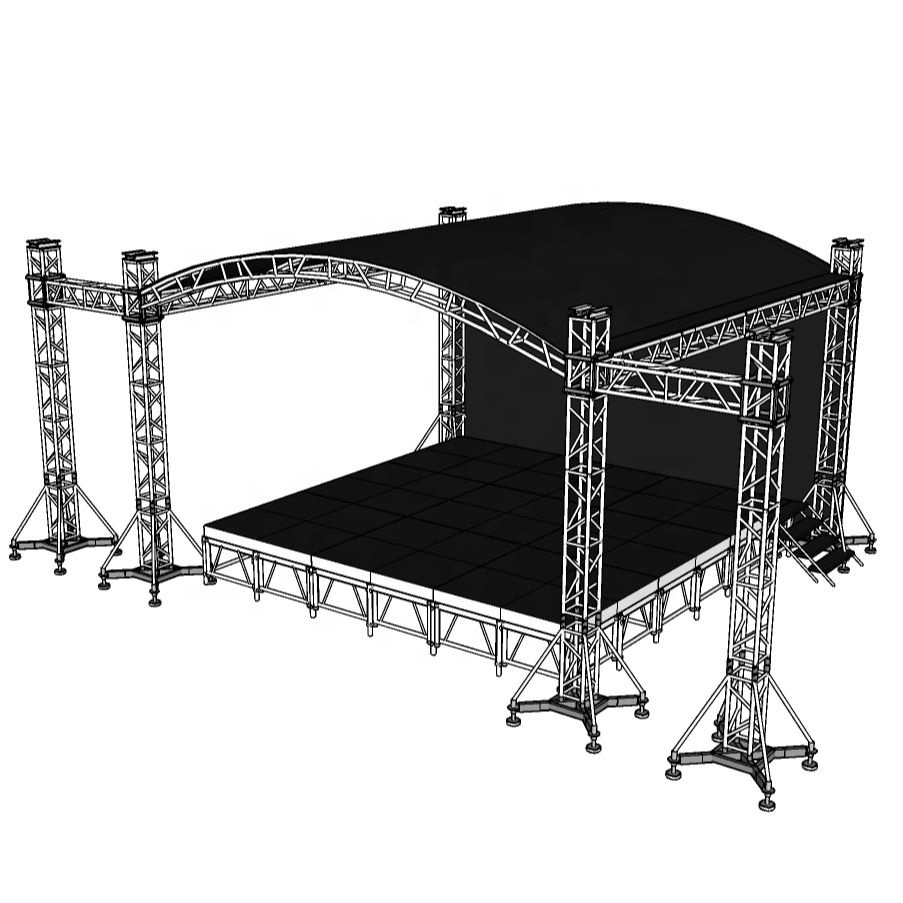

Aluminum Concert Stage Lighting Truss System
Product Specifications
| Material | Aluminum alloy |
| Unit length | 0.5m, 1m, 2m, 3m, 4m, 5m or customized |
| Color | Silver, black or customized |
| Truss section shape | Square or round |
| Shape | Square, Triangle, round or customized |
| Truss tube thickness | 1.5/2/3MM |
| Truss tube diameter | 20mm, 32mm, 50mm |
| Hardness | 16 degree |
| Application | Concert, Music, Performance, DJ Band, Event, Exhibition |
Technical Details
| Truss Material | Aluminum alloy 6082-T6 |
| Light duty truss | 200*200mm; 250*250mm |
| Medium duty truss | 290*290mm, 300*300mm; 350*350mm; 300*400mm; 400*400mm; 450*450mm; 400*600mm |
| Heavy duty truss | 520*760mm; 600*760mm; 600*1000mm |
| Main tube thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| Vice tube thickness | 18*2mm; 20*2.5mm; 25*2.5mm |
| Brace tube thickness | 20*2mm; 25*2mm; 30*2mm |
| Length | 0.5m/1m/1.5m/2m...4m or custom size |
| Truss type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Color options | Silver or black, blue, green... |
| Usage | Concert, new product release, fashion show, booth stand construction |
| Delivery Time | 10 working days |
Applications
Our aluminum alloy stage truss system is a modular solution made of lightweight aluminum alloy tubes that can be easily assembled and disassembled. It is widely used in various events and applications:
- Concerts and festivals: Build stages for concerts, festivals, and outdoor events with configurable shapes and sizes
- Theatrical productions: Create sets, backdrops, and structures for plays, musicals, and operas
- Exhibitions and trade shows: Construct booths and displays for product showcases
- Corporate events: Build stages for product launches, conferences, and award ceremonies
- Sports events: Create structures for race lines, podiums, and scoreboards
Company Advantages
Why choose our company?
- TUV, SGS, CE Certified products
- 15 years experience in truss and stage systems
- 35,000 m² workshop with strong production capacity
- Professional engineering team for project solutions
- Own aluminum profile production line for quality control
- Strict QC process with installation testing
How do we ensure quality?
Our products have TUV/SGS/CE/ISO9001 certifications. We provide samples for quality verification before bulk orders.
Payment methods:
T/T, Western Union, Trade Assurance, L/C
Warranty:
1-year warranty covering non-artificial damage with free replacements
Customization:
Our technical team provides perfect solutions for customized designs
