Aluminum Alloy Stage Truss for Events and Concerts
| 起源の場所 | 江蘇、中国 |
|---|---|
| ブランド名 | Shizhan |
| モデル番号 | アルミニウムトラスRT |
| 最小注文数量 | 100 |
| 価格 | US$52-55 |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 接続タイプ | ピン接続 | 形 | 長方形、正方形、三角形、円形またはカスタマイズ |
|---|---|---|---|
| フレームの設計 | 長方形 | 長さ | 1.0〜4.0m |
| 材料 | アルミニウム合金 | 負荷容量 | 1000kg |
| アセンブリメソッド | クイックインストール | 構造タイプ | モジュール構造 |
| 単位長さ | 0.5m、1m、2m、3m、4m、5mまたはカスタマイズされる | トリスセクション形状 | 正方形または円形 |
| トラスチューブの厚さ | 1.5/2/3mm | トラスチューブの直径 | 20mm、32mm、50mm |
| 硬度 | 16度 | メインチューブの厚さ | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| 副チューブの厚さ | 18*2mm 20*2.5mm 25*2.5mm | ||
| ハイライト | aluminum alloy stage truss,concert lighting truss system,event truss with aluminum alloy |
||
製品の説明
Aluminum Outdoor Stage Box Performance Truss
Product Specifications
| Connection Type | Pin Connection |
| Feature | Durable |
| Shape | Rectangle, square, Triangle, round or customized |
| Frame design | Rectangular |
| Product Type | Stage Truss |
| Application | Events, Concert, Music, Performance, DJ Band, Event, Exhibition |
| Length | 1.0-4.0m |
| Material | Aluminum Alloy 6082-T6 |
| Load-bearing Capacity | 1000kg |
| Assembly Method | Quick installation |
| Structure Type | Modular Structure |
| Unit length | 0.5m,1m,2m,3m,4m,5m or customized |
| Color | Silver, black or customized |
| Truss section shape | Square or round |
| Truss tube thickness | 1.5/2/3MM |
| Truss tube diameter | 20mm,32mm,50mm |
| Hardness | 16 degree |
Technical Details
| Light duty truss | 200*200mm; 250*250mm |
| Medium duty truss | 290*290mm,300*300mm; 350*350mm 300*400mm; 400*400mm; 450*450mm; 400*600mm |
| Heavy duty truss | 520*760mm; 600*760mm; 600*1000mm |
| Main tube thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| Vice tube thickness | 18*2mm; 20*2.5mm; 25*2.5mm |
| Brace tube thickness | 20*2mm; 25*2mm; 30*2mm |
| Truss type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Delivery Time | 10 working days |

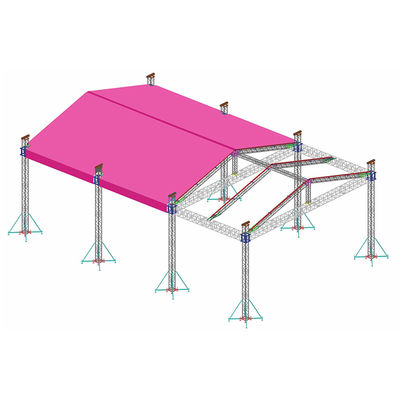

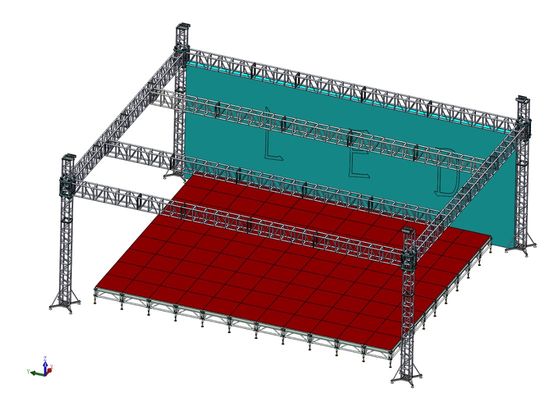

Product Images
Applications
Our aluminum alloy stage truss is a modular system made of lightweight aluminum alloy tubes that can be easily assembled and disassembled. It is widely used in various events and applications:
- Concerts and festivals: Build stages for outdoor events with configurable shapes and sizes
- Theatrical productions: Create sets, backdrops, and structures for plays and musicals
- Exhibitions and trade shows: Construct booths and displays for product presentations
- Corporate events: Build stages for product launches, conferences, and award ceremonies
- Sports events: Create structures for race lines, podiums, and scoreboards
Company Advantages
- TUV, SGS, CE Certified products
- 15 years experience in truss and stage manufacturing
- 35,000 m² workshop with strong production capacity
- Professional engineering team for project solutions
- Own aluminum profile production line for quality control
- Strict QC process with installation testing before delivery
Frequently Asked Questions
How can I verify your product quality?
Our products have TUV/SGS/CE/ISO9001 certifications. We also offer samples for quality checking before batch orders.
What payment methods do you accept?
T/T, Western Union, Trade Assurance, and L/C payments are accepted.
What is your product warranty?
We provide a one-year warranty covering any non-artificial damage with free replacement.
Do you offer custom designs?
Yes, our technical team can provide perfect solutions for your specific project requirements.
