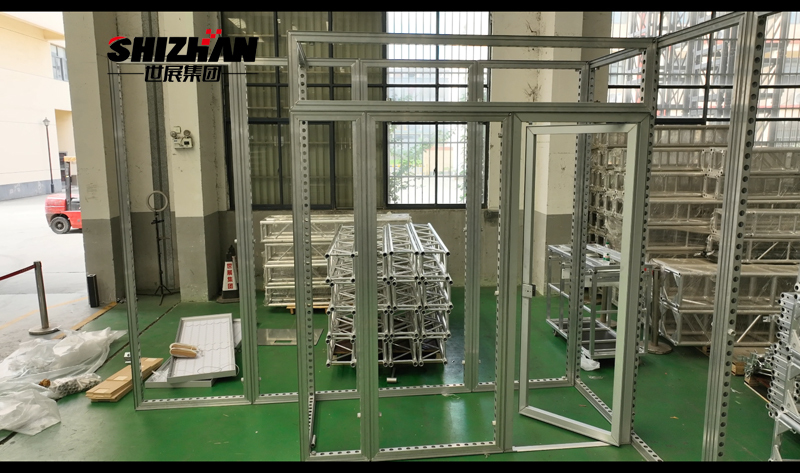

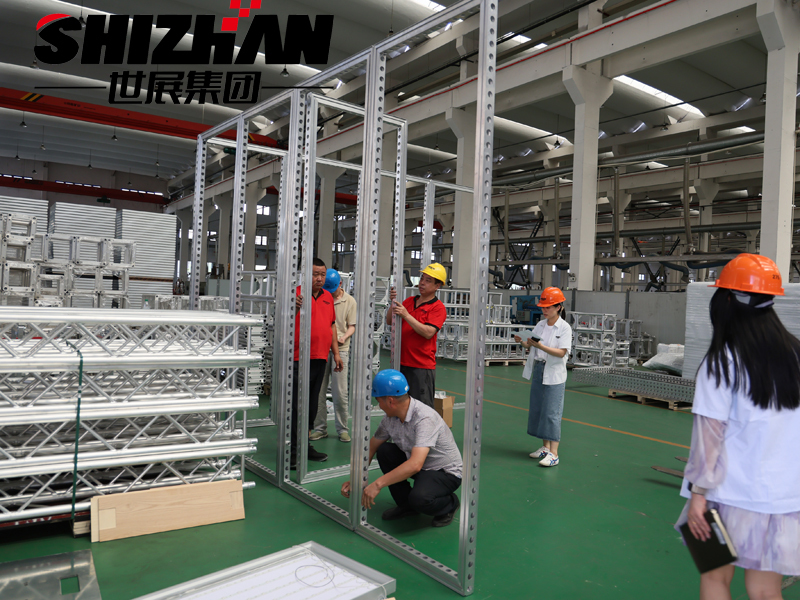

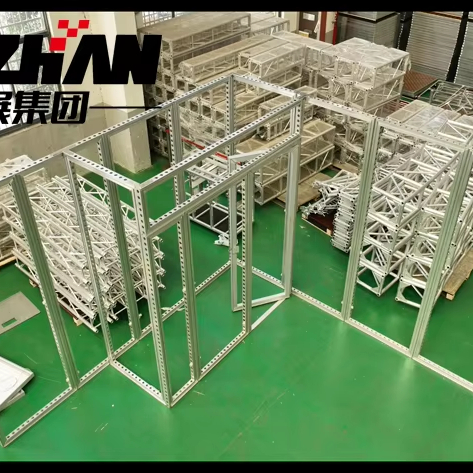

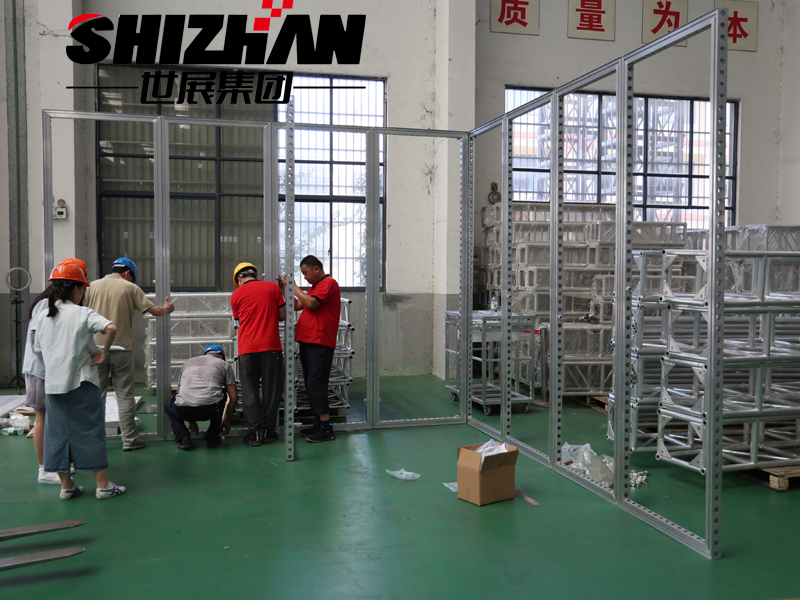

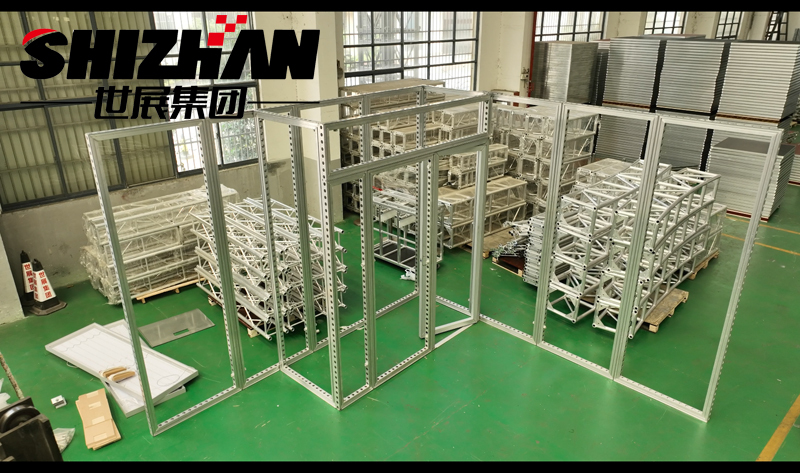

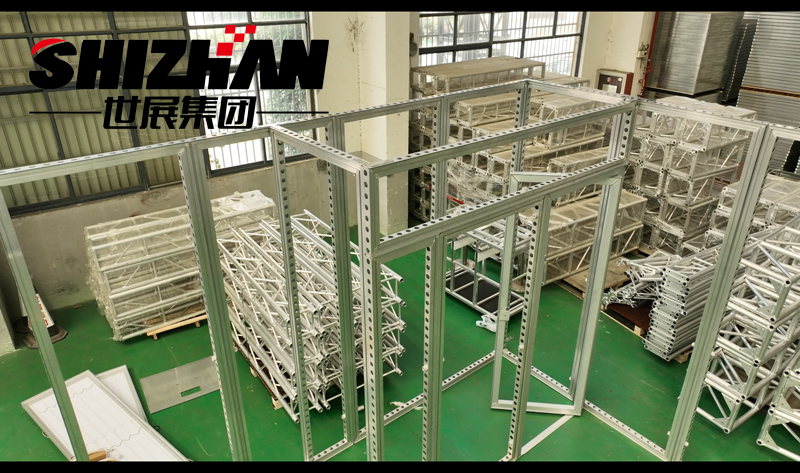

Aluminum Alloy Exhibition Truss Wall System for Events
| 起源の場所 | 江蘇、中国 |
|---|---|
| ブランド名 | Shizhan |
| モデル番号 | アルミニウムトラスRT |
| 最小注文数量 | 100 |
| 価格 | $30 |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 材料 | アルミニウム合金 | 単位長さ | 0.5m、1m、2m、3m、4m、5mまたはカスタマイズされる |
|---|---|---|---|
| トリスセクション形状 | 正方形または円形 | 形 | 正方形、三角形、円形またはカスタマイズされる |
| トラスチューブの厚さ | 1.5/2/3mm | トラスチューブの直径 | 20mm、32mm、50mm |
| 硬度 | 16度 | 軽dutyトラス | 200*200mm 250*250mm |
| 中程度のトラス | 290*290mm、300*300mm; 350*350mm、300*400mm、400*400mm、450*450mm、400*600mm | 重荷用トラス | 520*760mm; 600*760mm; 600*1000mm |
| メインチューブの厚さ | 30*2mm; 50*3mm; 50*4mm; 50*5mm | 副チューブの厚さ | 18*2mm 20*2.5mm 25*2.5mm |
| ブレースチューブの厚さ | 20*2mm; 25*2mm; 30*2mm | 長さ | 0.5m/1m/1.5m/2m…….4mまたはカスタムサイズ |
| トラス タイプ | スピゴットかボルト | ||
| ハイライト | aluminum alloy exhibition truss system,event truss wall system,aluminium lighting truss for events |
||
製品の説明
Standard Exhibition Aluminum Profile Wall System Booth Profile
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Standard Exhibition Aluminum Profile Wall System Booth Profile |
| Material | Aluminum alloy |
| Unit length | 0.5m, 1m, 2m, 3m, 4m, 5m or customized |
| Color | Silver, black or customized |
| Truss section shape | Square or round |
| Shape | Square, Triangle, round or customized |
| Truss tube thickness | 1.5/2/3MM |
| Truss tube diameter | 20mm, 32mm, 50mm |
| Hardness | 16 degree |
| Application | Concert, Music, Performance, DJ Band, Event, Exhibition |
Technical Details
| Truss Material | Aluminum alloy 6082-T6 |
| Light duty truss | 200*200mm; 250*250mm |
| Medium duty truss | 290*290mm, 300*300mm; 350*350mm; 300*400mm; 400*400mm; 450*450mm; 400*600mm |
| Heavy duty truss | 520*760mm; 600*760mm; 600*1000mm |
| Main tube thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| Vice tube thickness | 18*2mm; 20*2.5mm; 25*2.5mm |
| Brace tube thickness | 20*2mm; 25*2mm; 30*2mm |
| Length | 0.5m/1m/1.5m/2m...4m or custom size |
| Truss type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Color | Silver or black, blue, green... |
| Usage | Concert, new product release, fashion show, booth stand construction |
| Delivery Time | 10 working days |
Our aluminum alloy stage podium is a modular system made of lightweight aluminum alloy tubes that can be easily assembled and disassembled. It is widely used in various events including concerts, festivals, exhibitions, trade shows, and corporate events.
Common Applications
- Concerts and festivals: Used to build stages for outdoor events with configurable shapes and sizes, compatible with various accessories like guardrails and stairs.
- Theatrical productions: Ideal for constructing sets, backdrops, and other structures for plays, musicals, and operas with adjustable heights.
- Exhibitions and trade shows: Perfect for building booths and displays with customizable configurations to showcase products.
- Corporate events: Used for stages and backdrops at product launches, conferences, and award ceremonies with branding options.
- Sports events: Suitable for race start/finish lines, podiums, and scoreboards with sport-specific configurations.
This versatile and durable solution offers lightweight construction, easy assembly, and complete customization to meet specific event requirements. The modular design provides flexibility for event planners and organizers.
Frequently Asked Questions
Why should I choose your company instead of other suppliers?
- TUV, SGS, CE Certified products
- 15 years experience in truss, stage, barrier and scaffolding
- 35,000 m² workshop with excellent production capacity
- Professional engineering team for perfect project solutions
- Own aluminum profile production line for quality control
- Strict QC team ensuring product condition before delivery
- Process and final inspection with installation testing
How do I know your quality? Do you support sample orders?
Our products have TUV/SGS/CE/ISO9001 certifications. We offer samples for quality checking before batch orders.
Which payment methods do you accept?
T/T, Western Union, Trade Assurance, L/C.
What is your product warranty?
One year warranty covering non-artificial damage with free replacements.
Can you do customized designs?
Yes, our technical team provides perfect solutions for custom projects.
