Aluminum Alloy Outdoor Sound and Lights Truss Display
| 起源の場所 | 江蘇、中国 |
|---|---|
| ブランド名 | Shizhan |
| モデル番号 | アルミニウムトラスRT |
| 最小注文数量 | 100 |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 接続タイプ | ネジ、ピン、クイック | 形 | 正方形、長方形、円、三角形 |
|---|---|---|---|
| フレームの設計 | モジュラー、長方形、正方形 | 長さ | 1.0〜4.0m |
| 材料 | アルミ合金6082-T6 | 負荷容量 | 200kg |
| アセンブリメソッド | クイックインストール | 構造タイプ | モジュール構造 |
| 単位長さ | 0.5m、1m、2m、3m、4m、5m | トリスセクション形状 | 正方形または円形 |
| トラスチューブの厚さ | 1.5/2/3mm | トラスチューブの直径 | 20mm、32mm、50mm |
| 硬度 | 16度 | メインチューブの厚さ | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| 副チューブの厚さ | 18*2mm 20*2.5mm 25*2.5mm | ||
| ハイライト | aluminum alloy lighting truss,outdoor sound truss display,lightweight aluminum truss system |
||
製品の説明

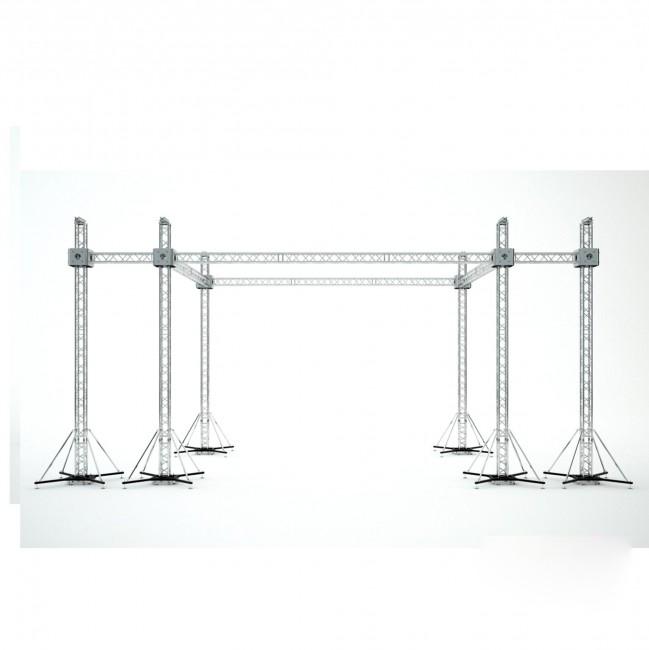

Outdoor Sound and Lights Truss Display
Product Specifications
| Attribute | Value |
|---|---|
| Connection Type | Screw connection, Pin Connection, Quick Connection |
| Feature | Portable, Durable, Foldable, Light Weight, Heavy Load, Quick Installation |
| Material | Aluminum Alloy 6082-T6 |
| Load-bearing Capacity | 200KG |
| Unit Length | 0.5m, 1m, 2m, 3m, 4m, 5m or Customized |
| Color | Silver, Black or Customized |
| Delivery Time | 10 working days |

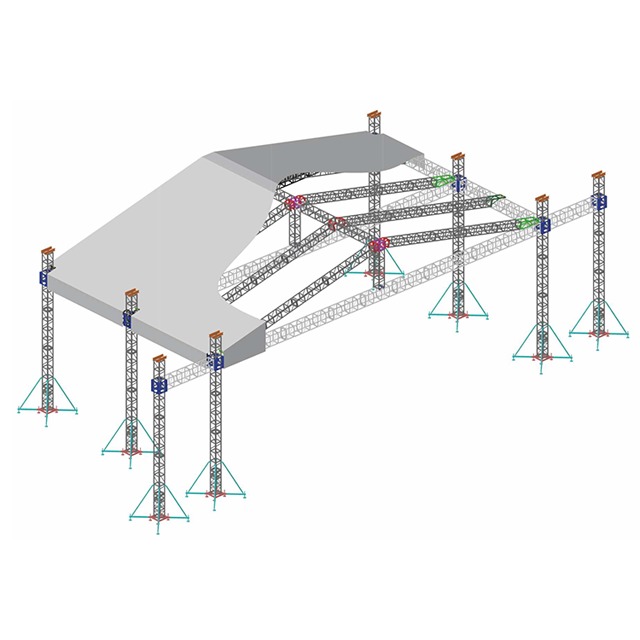

Truss Configuration Options
| Type | Dimensions |
|---|---|
| Light Duty Truss | 200×200mm; 250×250mm |
| Medium Duty Truss | 290×290mm, 300×300mm; 350×350mm; 300×400mm; 400×400mm; 450×450mm; 400×600mm |
| Heavy Duty Truss | 520×760mm; 600×760mm; 600×1000mm |
| Main Tube Thickness | 30×2mm; 50×3mm; 50×4mm; 50×5mm |
| Vice Tube Thickness | 18×2mm; 20×2.5mm; 25×2.5mm |
Applications
- Concerts and music festivals
- Trade shows and exhibitions
- Outdoor events and performances
- New product releases
- Fashion shows
- Booth stand construction
Why Choose Our Truss Systems
- Certified Quality: TUV, SGS, CE Certified
- 15 Years Experience: Specialized in truss, stage, and scaffolding systems
- 35,000 m² Workshop: Ensures production capacity and on-time delivery
- Professional Engineering: Custom solutions for your specific project needs
- In-House Production: Full control over aluminum profile quality
- Strict QC Process: Double inspection and installation testing before delivery
Frequently Asked Questions
How can I verify your product quality?
Our products hold TUV/SGS/CE/ISO9001 certifications. We also provide samples for quality evaluation before bulk orders.
What payment methods do you accept?
We accept T/T, Western Union, Trade Assurance, and L/C payments.
What is your warranty policy?
We offer a 1-year warranty covering any non-artificial damage with free replacement parts.
Do you provide custom designs?
Yes, our technical team can develop perfect solutions for your specific project requirements.
