Aluminum Stage Truss System 300kg Load Capacity Quick Installation
| 起源の場所 | 江蘇、中国 |
|---|---|
| ブランド名 | Shizhan |
| モデル番号 | アルミニウムトラスRT |
| 最小注文数量 | 30 |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 接続タイプ | ネジ接続、ピン接続、クイック接続 | 形 | 長方形、正方形、円、カスタマイズ、正方形、三角形、円形またはカスタマイズ |
|---|---|---|---|
| フレームの設計 | モジュラー、長方形、正方形 | 長さ | 1.0～5.0m |
| 材料 | アルミニウム合金 | 負荷容量 | 300kg |
| アセンブリメソッド | クイックインストール | 構造タイプ | モジュール構造 |
| 単位長さ | 0.5m、1m、2m、3m、4m、5mまたはCustomerized | トリスセクション形状 | 正方形または円形 |
| トラスチューブの厚さ | 1.5/2/3mm | トラスチューブの直径 | 20mm、32mm、50mm |
| 硬度 | 16度 | メインチューブの厚さ | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| 副チューブの厚さ | 18*2mm 20*2.5mm 25*2.5mm | ||
| ハイライト | aluminum stage truss system 300kg load,quick installation aluminum lighting truss,aluminium truss system with high capacity |
||
製品の説明

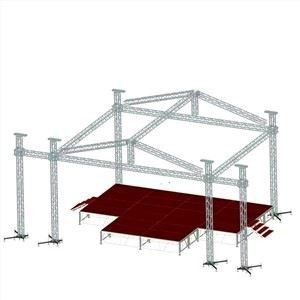

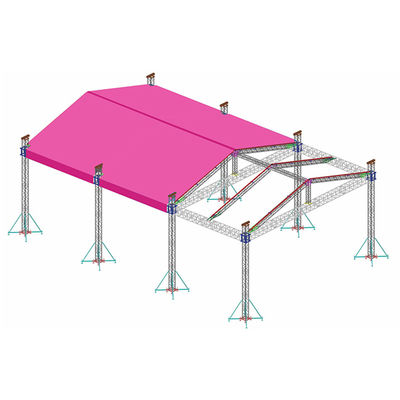

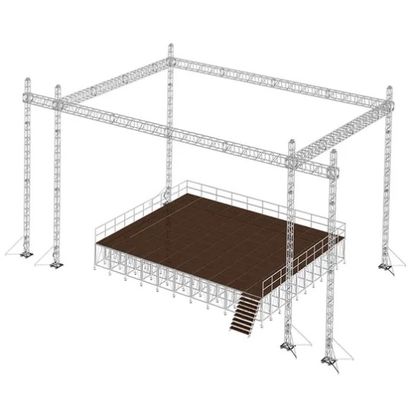

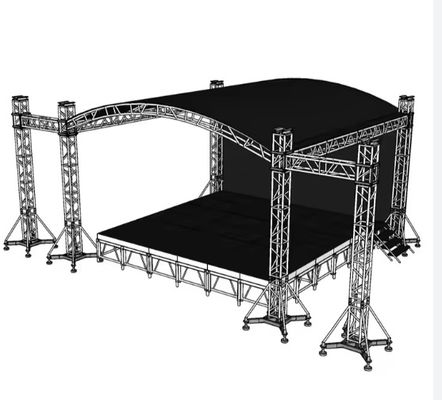

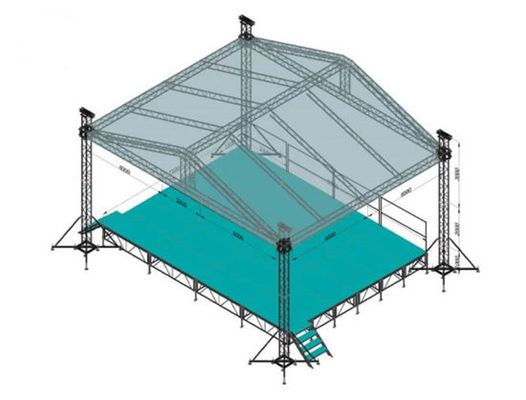

Aluminium Stage Lighting Truss Roof System
Product Overview
Our aluminum stage lighting truss roof system is a professional-grade solution designed for concerts, exhibitions, and outdoor events. The modular design offers versatility while maintaining structural integrity with a 300kg load-bearing capacity.
Key Specifications
| Material | Aluminum Alloy 6082-T6 |
| Load-bearing Capacity | 300Kg |
| Length Options | 0.5m, 1m, 2m, 3m, 4m, 5m or customized |
| Truss Types | Ladder, triangular, square, arch, circle |
| Color Options | Silver, black, blue, green or customized |
| Delivery Time | 10 working days |
Technical Details
| Truss Type | Dimensions |
|---|---|
| Light Duty Truss | 200×200mm; 250×250mm |
| Medium Duty Truss | 290×290mm to 400×600mm |
| Heavy Duty Truss | 520×760mm; 600×760mm; 600×1000mm |
| Main Tube Thickness | 30×2mm to 50×5mm |
| Vice Tube Thickness | 18×2mm to 25×2.5mm |
Product Features
- Weather-resistant design for outdoor use in all seasons
- Modular structure for quick installation and customization
- Multiple connection types: screw, pin, and quick connection
- Portable, durable, and foldable design
- Available in rectangular, square, circular, and custom shapes
- Roof top cover included for weather protection
Applications
Our aluminum truss system is ideal for:
- Concerts and music festivals
- Trade shows and exhibitions
- Outdoor events and performances
- DJ setups and band performances
- New product launches and fashion shows
- Booth stand construction
Why Choose Our Aluminum Truss Systems?
- TUV, SGS, CE Certified products
- 15 years of industry experience
- 35,000 m² production facility ensuring timely delivery
- Professional engineering team for customized solutions
- In-house aluminum profile production for quality control
- Rigorous quality inspection process
- Installation testing before delivery
Frequently Asked Questions
How can I verify your product quality?
Our products are TUV/SGS/CE/ISO9001 certified. We offer sample orders for quality verification before bulk purchases.
What payment methods do you accept?
We accept T/T, Western Union, Trade Assurance, and L/C payments.
What is your product warranty?
We provide a one-year warranty covering any non-artificial damage with free replacement parts.
Do you offer custom designs?
Yes, our technical team can create customized solutions for your specific project requirements.
